Required accessories for Aurora XS column operation

Required accessories for Aurora XS column operation

Depending on your chosen column length, the following accessories may be required to ensure optimal performance:

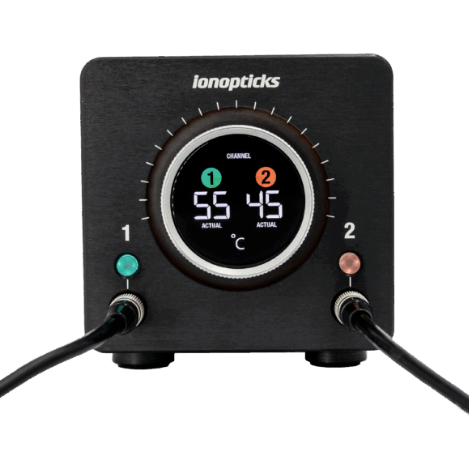

HeatSync™ 2-Channel Controller
  1. Introducing the HeatSync range of temperature control solutions, which includes:
    1. 1 x HeatSync™ 2-Channel Controller (Part No. HSHEATCON02)
    2. 1 x HeatSync™ Column Heater (Part No. HSCOLHTR01)
  2. Provides enhanced functionality, replacing the original IonOpticks Heater Controller (IOHEATCON1).

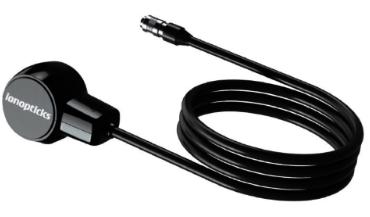

HeatSync™ Column Heater
  1. Part No. HSCOLHTR01
  2. Includes a 1 m power cable
  3. Designed to pair with the HeatSync™ 2-Channel Controller and IonOpticks Heater Controller (Original).
Note: Operating the Ultimate 25x75 XS or Elite 15x75 XS columns without a column heater may lead to fluctuating temperatures and increased back pressure at optimal flow rates, generating inconsistent sample separation.



IonOpticks Column Heater (Original)
  1. Part No. IOHEATCON1
  2. The IonOpticks Heater Controller (Original) pairs with the IonOpticks Column Heater.

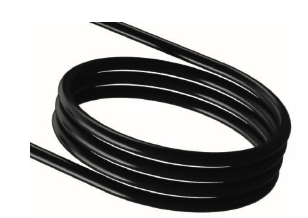

HeatSync™ Column Heater Extension Cable (1m)
  1. Part No. EXTCABLE03
  2. Optional 1m extension cable for the HeatSync™ 2-Channel Controller and IonOpticks Heater Controller.



Additional Accessories
All Aurora XS columns require the following accessory:

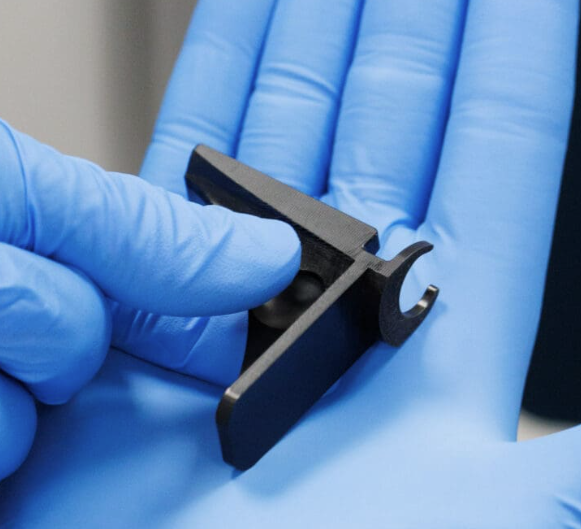

Aurora XS Installation Toolkit
    1. Part No. XSITK01
    2. Includes an adapter for Aurora XS columns and probe setting tool to assist with installation
