Required accessories for Aurora CSI column operation

Required accessories for Aurora CSI column operation

Depending on your chosen column length and Instrument setup, the following accessories may be required to ensure optimal performance:

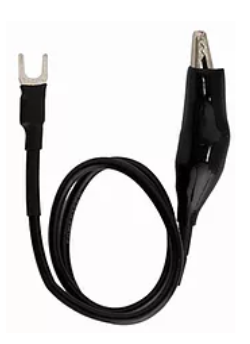

Earth cable
  1. Part No. HVCABLE02
  2. Required for all Aurora CSI column dimensions when used with a Bruker CaptiveSpray source, if the instrument does not already have an earth cable fitted.
  3. Allows the earth connection to be established with the nanoZero® or VHP fitting.

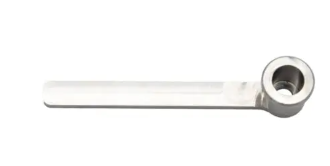

30 mm Grounding Arm for Bruker Column Toaster
  1. Part No. GNDARM01
  2. Required for 5 cm Aurora Rapid columns with a Bruker Column Toaster in a Bruker CaptiveSpray or CaptiveSpray 2 source.
  3. This replaces the plastic grounding arm inside the Bruker Column Toaster and allows the earth connection to be established with the nanoZero®

55 mm Grounding Arm for Bruker Column Toaster
  1. Part No. GNDARM02
  2. Required for 8 cm Aurora Rapid columns with a Bruker Column Toaster in a Bruker CaptiveSpray or CaptiveSpray 2 source.
  3. This replaces the plastic grounding arm inside the Bruker Column Toaster and allows the earth connection to be established with the nanoZero®



Column Heating
  1. Required for heating 60 cm Aurora Frontier CSI columns
  2. Optional for heating 25 cm Aurora Ultimate CSI, 15 cm Aurora Elite CSI, 8 cm Aurora Rapid 8x75 and 8x150 CSI, and 5 cm Aurora Rapid 5x75 and 5x150 CSI columns.

    Note: Operating 25 cm Aurora Ultimate XT or 15 cm Aurora Elite XT columns without a column heater may lead to fluctuating temperatures and increased back pressure at optimal flow rates, generating inconsistent sample separation.

For compatible column heaters with Aurora Series columns, see this support article.
