Aurora CSI column product details

Aurora CSI column product details

The Aurora CSI range columns are compatible with the Bruker CaptiveSpray source, offering a plug-and-play format tailored to Bruker workflows.

Is the Aurora CSI compatible with your workflows?

We recommend choosing the Aurora CSI if:
  1. You're using the Bruker CaptiveSpray, CaptiveSpray 2, or CaptiveSpray Ultra ion source, and/or
  2. You're using the Bruker Column Toaster and/or Sonation Column Oven as your column heating solution.

Key Compatibility Information
  • Bruker CaptiveSpray source: Aurora CSI columns are directly compatible with Bruker CaptiveSpray, CaptiveSpray 2, or CaptiveSpray Ultra ion source.
  • Plug-and-play installation: No additional adapters or modifications required

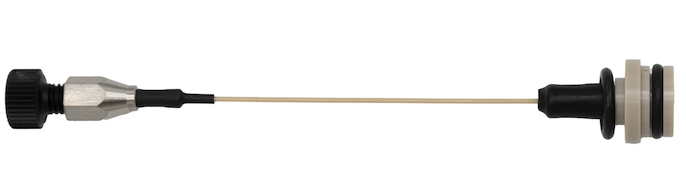

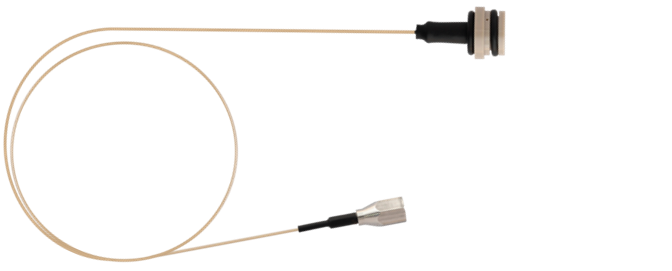

  • Column Format: The column is pre-installed within the capillary holder and interfaces directly with the CaptiveSpray source



Aurora CSI product range dimensions include:

Aurora Frontier 60x75 CSI
  1. Dimensions: 60cm x 75µm ID, 1.7µm C18
  2. Volume: 2.65μl
  3. Part No. AUR4-60075C18-CSI



Aurora Ultimate 25x75 CSI
  1. Dimensions: 25cm x 75µm ID, 1.7µm C18
  2. Volume: 1.1μl
  3. Part No. AUR4-25075C18-CSI

Aurora Ultimate 25x150 CSI
  1. Dimensions: 25cm x 150µm ID, 1.7µm C18
  2. Volume: 4.42μl
  3. Part No. AUR4-250150C18-CSI



Aurora Elite 15x75 CSI
  1. Dimensions: 15cm x 75µm ID, 1.7µm C18
  2. Volume: 0.66μl
  3. Part No. AUR4-15075C18-CSI

Aurora Elite 15x150 CSI
  1. Dimensions: 15cm x 150µm ID, 1.7µm C18
  2. Volume: 2.66μl
  3. Part No. AUR4-150150C18-CSI


Aurora Rapid 8x75 CSI
  1. Dimensions: 8cm x 75µm ID, 1.7µm C18
  2. Volume: 0.35μl
  3. Part No. AUR4-8075C18-CSI

Aurora Rapid 8x150 CSI
  1. Dimensions: 8cm x 150µm ID, 1.7µm C18
  2. Volume: 1.4μl
  3. Part No. AUR4-80150C18-CSI



Aurora Rapid 5x75 CSI
  1. Dimensions: 5cm x 75µm ID, 1.7µm C18
  2. Volume: 0.22μl
  3. Part No. AUR4-5075C18-CSI

Aurora Rapid 5x150 CSI
  1. Dimensions: 5cm x 150µm ID, 1.7µm C18
  2. Volume: 0.88μl
  3. Part No. AUR4-50150C18-CSI


The following applies to all column dimensions:

Column format:
Analytical column
Column type:
Reversed-phase
For use with:
UHPLC
Pore size:
120Å
Max pressure:
>1700 bar
Temp limits:
60°C (low pH)
Particle size:
1.7μm
pH stability:
1-8
Stationary phase:
C18
