Installing / Removing an Aurora Rapid® 5 cm column into the HeatSync™ Rapid 5 cm Column Housing

Installing / Removing an Aurora Rapid® 5 cm column into the HeatSync™ Rapid 5 cm Column Housing

This guide walks you through installing the Aurora Rapid 5 cm column (AUR4-50150C18, AUR4-5075C18) into the HeatSync™ Rapid 5 cm Column Housing (HS5CMH01) in preparation for installation into your Thermo Scientific source. Each step includes tips and image suggestions to make installation quick and easy:

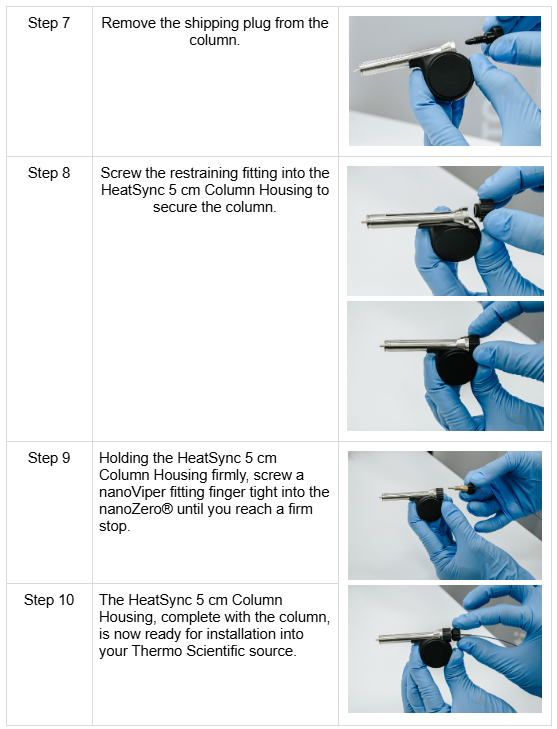

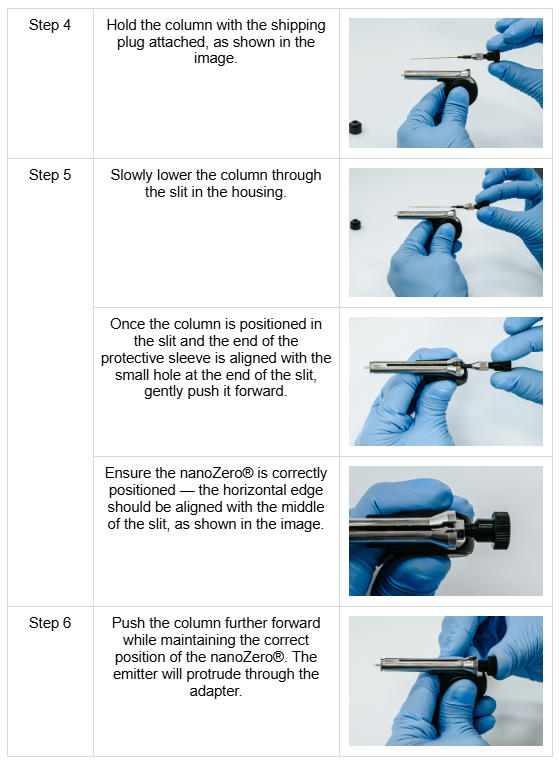

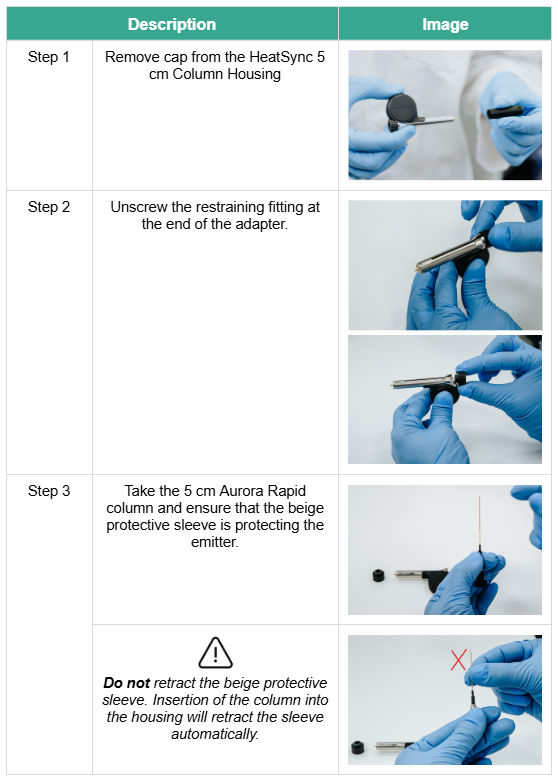

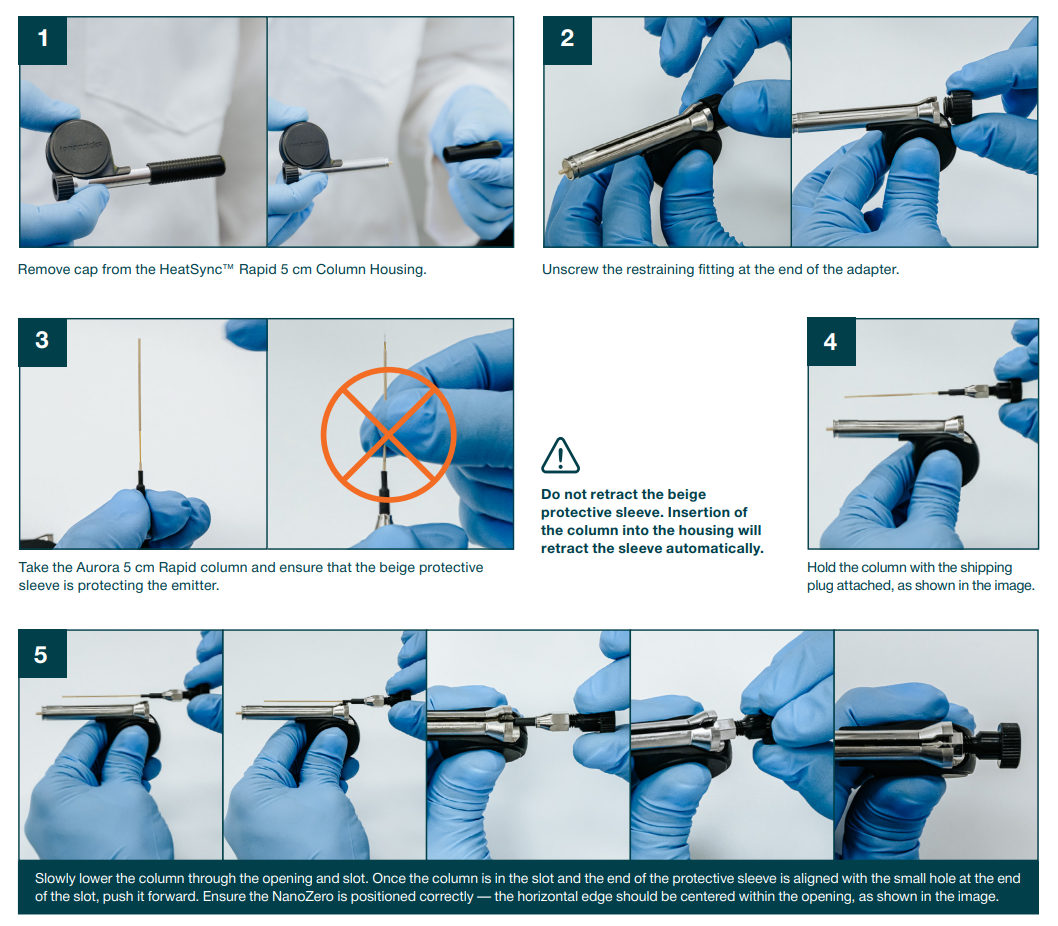

1. (0:00) Installing Rapid 5 cm column into HeatSync™ Rapid 5 cm Column Housing

2. (0:40) Preparing Aurora 5 cm column for install

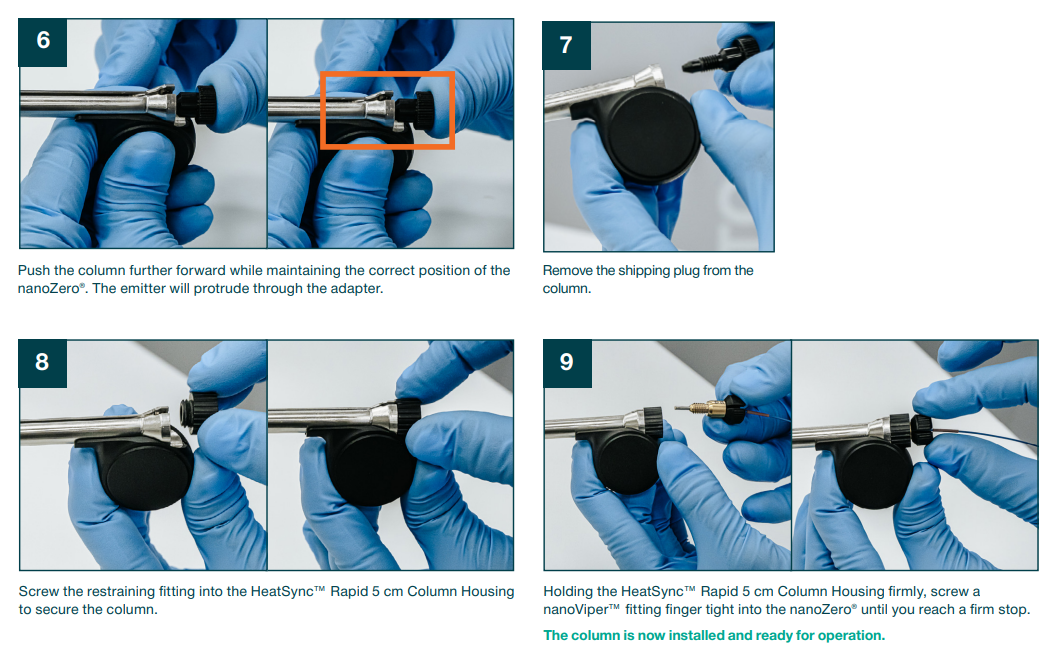

3. (1:54) Installing nanoViper capillary line

4. (2:09) Removing Aurora 5 cm column from HeatSync™ Rapid 5 cm Column Housing



For instructions on installing the HeatSync™ Rapid 5 cm Column Housing with the Thermo Scientific EASY-Spray or Nanospray Flex source, using either the HeatSync™ Controller or the IonOpticks Heater Controller, please click the relevant link.

Installation Steps

​
