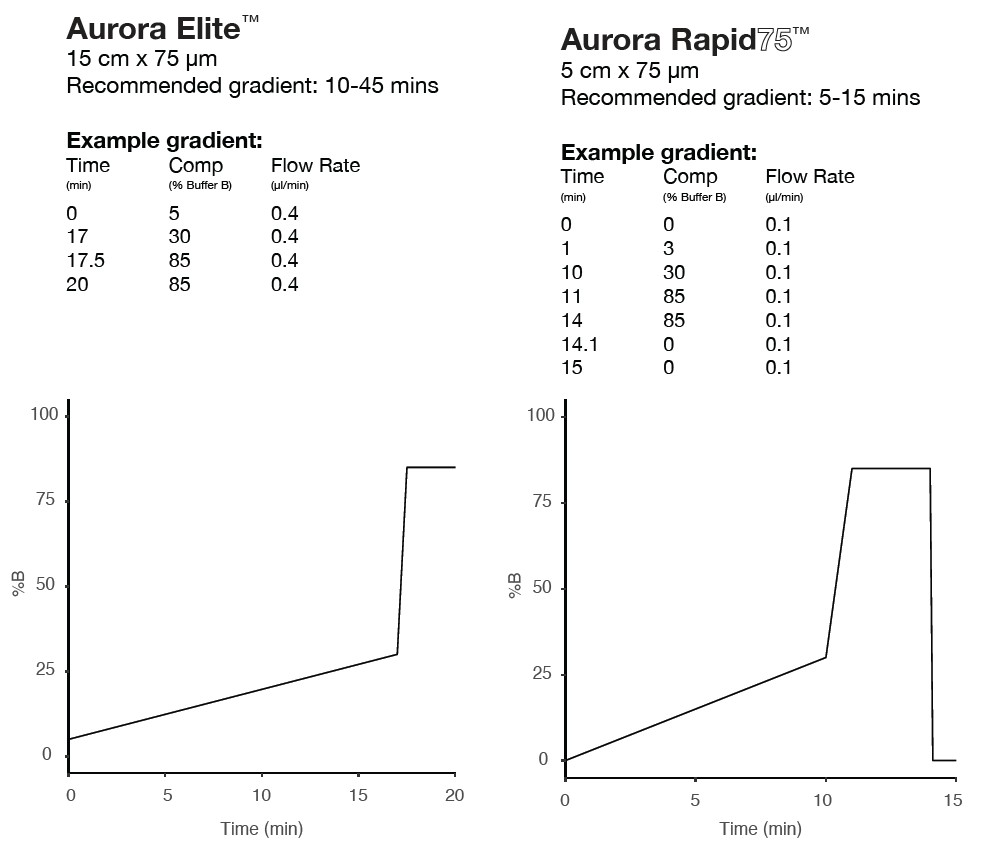

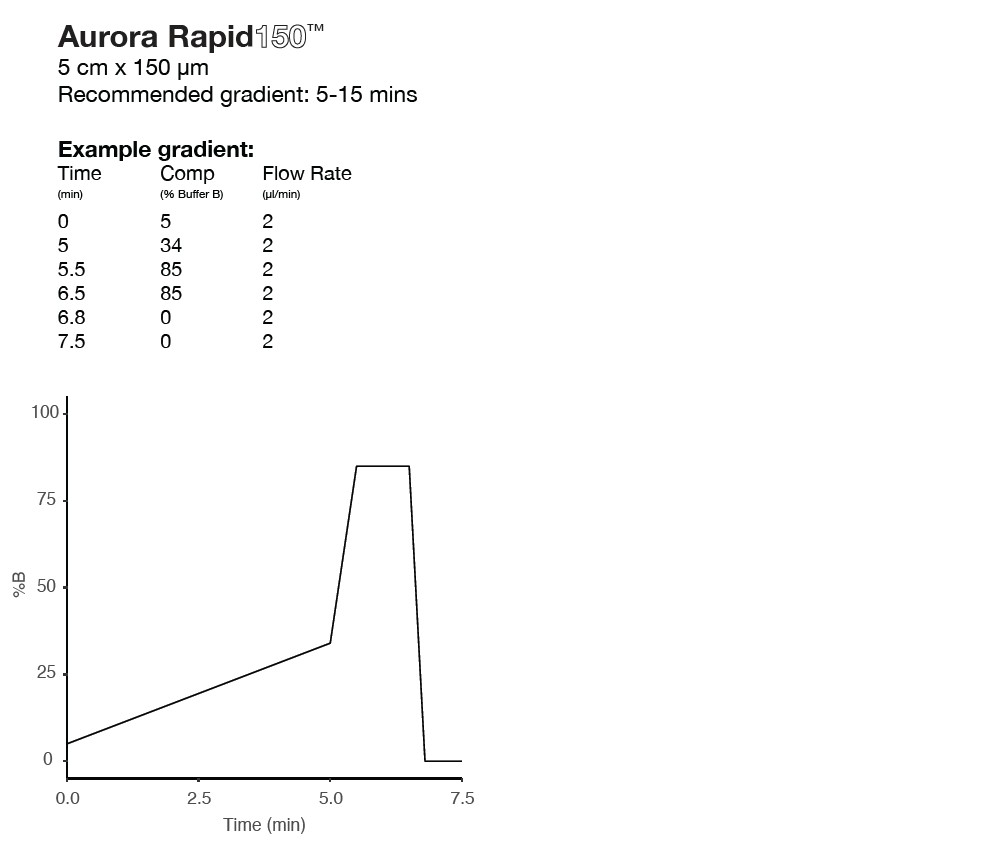

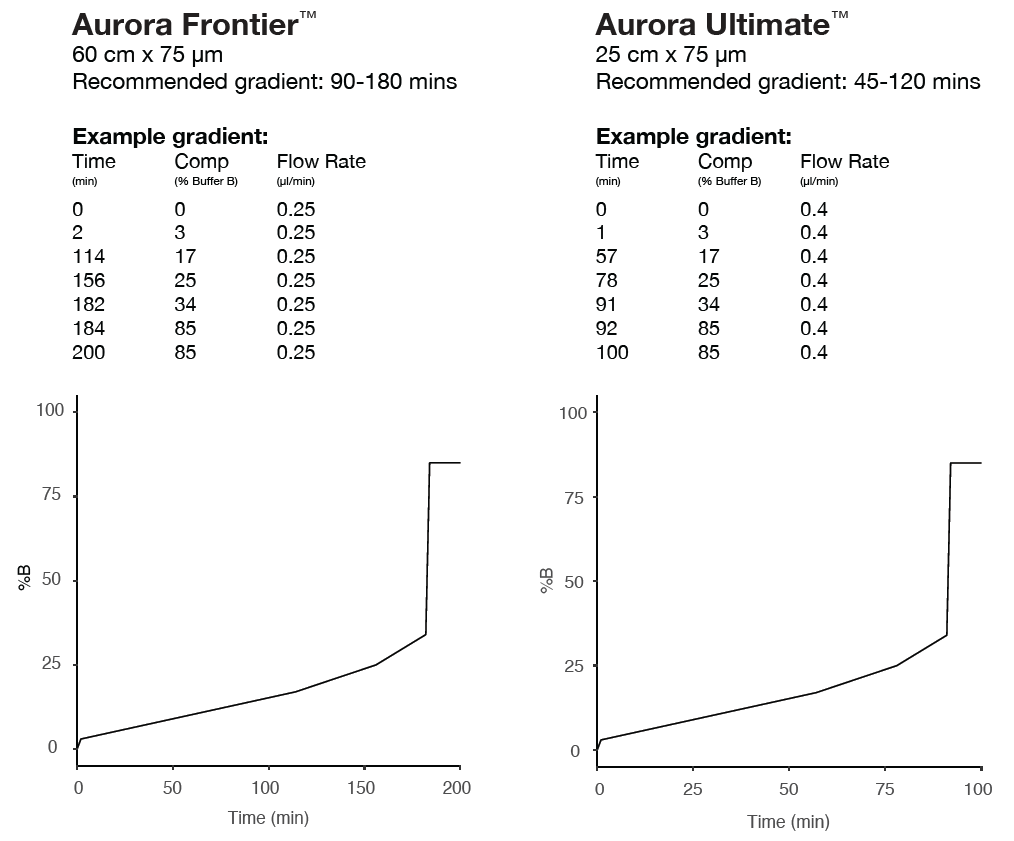

Example gradients for Aurora Series columns

• Related Articles

• Expected back pressure, 15cm Aurora Elite column

  The below graph depicts the expected backpressure of a 15cm Aurora Elite column, for a given flow rate at both room temperature and 40°C. The buffer composition is 79.9% water, 20% acetonitrile, 0.1% formic acid. The Aurora Series column and ...

• Expected back pressure, 25cm Aurora Ultimate column

  The below graph depicts the expected backpressure of a 25cm Aurora Ultimate column, for a given flow rate at both room temperature and 40°C. The buffer composition is 79.9% water, 20% acetonitrile, 0.1% formic acid. The Aurora Series column and ...

• Expected back pressure, 5cm Aurora Rapid75 column

  The below graph depicts the expected backpressure of a 5cm Aurora Rapid75 column, for a given flow rate at both room temperature and 40°C. The buffer composition is 79.9% water, 20% acetonitrile, 0.1% formic acid. The Aurora Series column and ...

• Expected back pressure, 60cm Aurora Frontier column

  The below graph depicts the expected backpressure of a 60cm Aurora Frontier column, for a given flow rate at 60°C. This graph was recorded after 50 sample injections. The buffer composition is 79.9% water, 20% acetonitrile, 0.1% formic acid. The ...

• Expected back pressure, 5cm Aurora Rapid150 column

  The below graph depicts the expected backpressure of a 5cm Aurora Rapid150 column, for a given flow rate at both room temperature and 40°C. The buffer composition is 79.9% water, 20% acetonitrile, 0.1% formic acid. The Aurora Series column and ...
